• 1.3 Million Pixel Max Width : 1280 Max Height:102
• Support window position, size adjustment and
  window interception. After the expansion daughter card is installed, the mouse is controlled by the mouse in the source mode of the extended daughter card.
• Support input source one-key switching.
• Support for external indepedent audio.
• Support for input resolution presets and custom adjusments.
• Supports full-screen zoom, point-to-point display, and custom zoom modes

• Product type: Two-in-one controller
• Support zoom: support
• Support splicing: Not supported
• Picture in Picture: Not supported
• Source switching special effects: support fade in and fade out and straight cut
• Custom EDID: support
• Maximum output resolution: maximum width 3840 pixels; maximum height 1920 pixels
• Video input interface: DVI*1, HDMI1.3*1, VGA*1, USB playback*1, CVBS*1, optional expansion daughter card*1
• LED Out: 4 Gigabit Ethernet ports
• Load capacity: 2.6 million pixels
• Support loop out: not supported
• Control method: USB, serial port control
• Video source bit depth: 10bit/8bit

• Product type: 2-in-1 controller
• Support zoom: support
• Support splicing: support
• Picture in Picture: Support
• Source switching effect: not supported
• Custom EDID: Support
• Maximum output resolution: 4096
• Video input interface: HDMI1.3 × 2, DVI × 1
• LED Out: six network ports
• Load capacity: 3.9 million
• Support loop-out: not supported
• Control method: USB, serial control
• Video source bit depth: 10bit / 8bit

• Input :
  2 × HDMI 1.4
  1 × DVI (HDMI 1.4)
  1 x 3G SDI (IN+LOOP) Optional
  1 x Audio
• Output :
  10 × Gigabit Ethernet Port
  1 × HDMI 1.3 (Preview)
  1 x Audio
• 6.5 Million Pixel (10240 Widest, 8192 Highest)
• Aplikasi: NovaLCT, SmartLCT, V-Can, ViPlex

• Novastar 2-in-1 Video controller V1260
• Product type: 2-in-1 video controller
• Support zoom: support
• Support splicing: support
• Picture in Picture: Support
• Source switching effects: Support
• Custom EDID: Support
• Maximum output resolution: width up to 16384,height up to 8192
• Video input interface: HDMI 2.0 × 1, DVI × 4, 3G-SDI × 1
• LED Out: 16 network ports, 4 fiber outputs
• Load capacity: 10.4 million pixels
• Support loop-out: None
• Control method: USB, serial control
• Video source bit depth: 10bit / 8bit

• Input connectors
  − 1x HDMI 1. 1.3 (IN &
  − 1x HDMI 1. 3
  − 1x DVI (IN &
  − 1x 3G -SDI (IN &
  − 1x optical fiber port (OPT1)
• Output connectors
  − 4x Gigabit Ethernet ports
  A single device unit drives up to 2.6 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
  − 2x Fiber outputs
  OPT 1 copies the output on 4 Ethernet ports.
  OPT 2 copies or backs up the output on 4 Ethernet ports.
  − 1x HDMI 1.3
  For monitoring or video output
• SelfSelf-adaptive OPT 1 for either video input or sending card output
  Thanks to the self self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
•  2x layers
  − Adjustable layer size and position
  − Adjustable layer priority

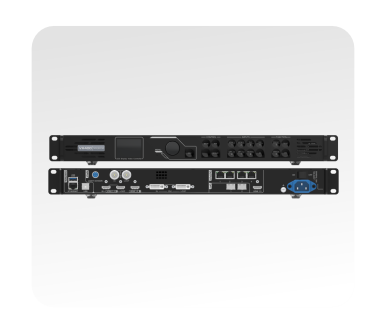

• Input connectors
  − 1x HDMI 1.3 (IN & LOOP)
  − 1x HDMI 1.3
  − 1x DVI (IN & LOOP)
  − 1x 3G-SDI (IN & LOOP)
  − 1x 10G optical fiber port (OPT1)
•  Output connectors
  − 6x Gigabit Ethernet ports A single device unit drives up to 3.9 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
  − 2x Fiber outputs
  OPT 1 copies the output on 6 Ethernet ports.
  OPT 2 copies or backs up the output on 6 Ethernet ports.
  − 1x HDMI 1.3
  For monitoring or video output
•  Self-adaptive OPT 1 for either video input or sending card output
  Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
• 3x layers
  − Adjustable layer size and position
  − Adjustable layer priority
•  Output synchronization
  An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
• Powerful video processing
  − Based on SuperView III image quality processing technologies to provide stepless output scaling
  − One-click full screen display
  − Free input cropping

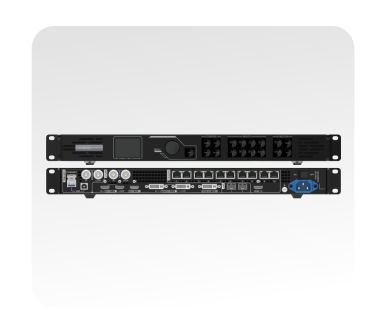

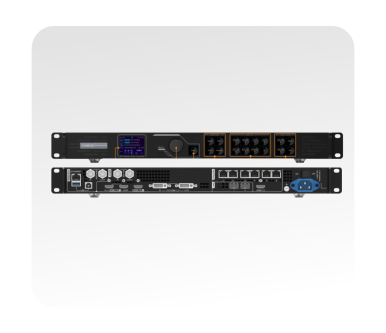

• Input connectors
  − 1x HDMI 1.4 (IN & LOOP)
  − 1x HDMI 1.4
  − 1x DVI (IN & LOOP)
  − 1x DVI
  − 1x 3G-SDI (IN & LOOP)
  − 1x 10G optical fiber port (OPT1)
•  Output connectors
  − 10x Gigabit Ethernet ports
  A single device unit drives up to 6.5 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
  − 2x Fiber outputs
  OPT 1 copies the output on 10 Ethernet ports.
  OPT 2 copies or backs up the output on 10 Ethernet ports.
  − 1x HDMI 1.3
  For monitoring or video output
•  Self-adaptive OPT 1 for either video input or sending card output
  Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector depending on its connected device.
• 3x layers
  − Adjustable layer size and position
  − Adjustable layer priority
•  Output synchronization
  An internal input source or external Genlock can
  be used as the sync source to ensure the output
  images of all cascaded units in sync.
• Powerful video processing
  − Based on SuperView III image quality processing technologies to provide stepless output scaling.
  − One-click full screen display
  − Free input cropping

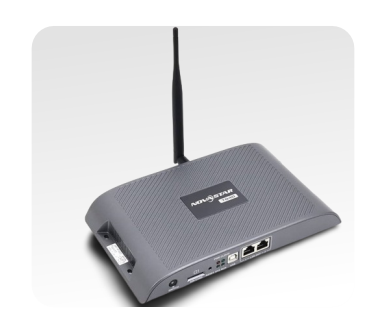

• Loading capacity up to 650,000 pixels with a maximum width of 1920 pixels and a maximum height of 1080 pixels
• 1x Gigabit Ethernet output
•  1x Stereo audio output
•  1x HDMI 1.3 input, accepting HDMI input and allowing content to auto fit to screen
•  1x USB 2.0, capable of playing solutions imported from a USB drive
•  1x USB Type B, capable of connecting to a PC
  Connecting this port to a PC allows users to configure screens, publish solutions, etc. with NovaLCT and ViPlex Express.
•  Powerful processing capacity
  − 4 core 1.2 GHz processor
  − Hardware decoding of 1080P videos
  − 1 GB of RAM
  − 32 GB of internal storage (28 GB available)
•  All-round control plans
  − Solution publishing and screen control via user terminal devices such as PC, mobile phones and tablets
  − Remote cluster solution publishing and screen control
  − Remote cluster screen status monitoring

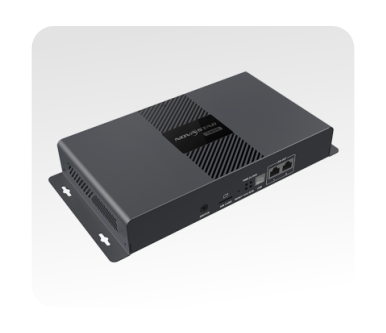

• OUTPUT
•  Loading capacity up to 650,000 pixels
• Maximum width: 4096 pixels
• Maximum height: 4096 pixels
• 2x Gigabit Ethernet ports
  One serves as primary and the other as backup.
• 1x Stereo audio connector
  The audio sample rate of the internal source is fixed at 48 kHz. The audio sample rate of the external source supports 32 kHz, 44.1 kHz, or 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.
• INPUT
• 2x sensor connectors
  Connect to brightness sensors or temperature and humidity sensors.
• CONTROL
•  1x USB 3.0 (Type A) port
  Allows for playback of content imported from a USB drive and firmware upgrade over USB.
• 1x USB (Type B) port Reserved
• 1x Gigabit Ethernet port
  Connects to a LAN, public network, or computer for content publishing and screen control.
• PERFOMANCE
•  Powerful processing capacity
  − Quad-core ARM A55 processor @1.8 GHz
  − Support for H.264/H.265 4K@60Hz video decoding
  − 1 GB of onboard RAM
  − 16 GB of internal storage

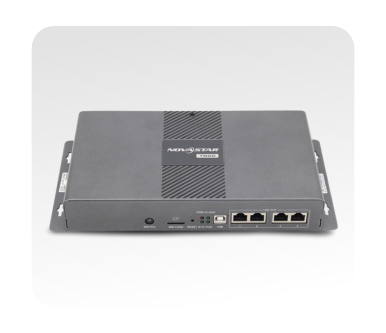

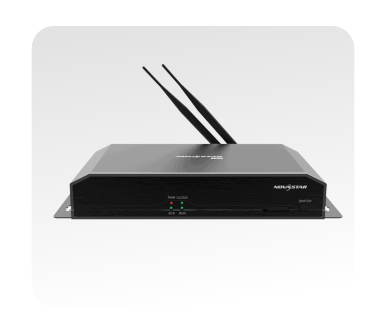

OUTPUT

• Loading capacity up to 1,300,000 pixels
  Maximum width: 4096 pixels
  Maximum height: 4096 pixels
•  2x Gigabit Ethernet ports
  These two ports serve as primary by default.
  Users can also set one as primary and the other
  as backup.
• 1x Stereo audio connector
  The audio sample rate of the internal source is fixed at 48 kHz. The audio sample rate of the external source supports 32 kHz, 44.1 kHz, or 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.
• 1x HDMI 1.4 connector
  Maximum output: 1080p@60Hz, support for HDMI loop Input

INPUT

•  1x HDMI 1.4 connector
  In synchronous mode, video sources input from this connector can be scaled to fit the entire screen automatically.
•  2x sensor connectors
  Connect to brightness sensors or temperature and humidity sensors.

CONTROL

•  1x USB 3.0 (Type A) port
  Allows for playback of content imported from a USB drive and firmware upgrade over USB.
• 1x USB (Type B) port Reserved
• 1x Gigabit Ethernet port
  Connects to a LAN, public network, or computer for content publishing and screen control.

OUTPUT

• Loading capacity up to 1,300,000 pixels
  Maximum width: 4096 pixels
  Maximum height: 4096 pixels
•  2x Gigabit Ethernet ports
  These two ports serve as primary by default.
  Users can also set one as primary and the other
  as backup.
• 1x Stereo audio connector
  The audio sample rate of the internal source is fixed at 48 kHz. The audio sample rate of the external source supports 32 kHz, 44.1 kHz, or 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.
• 1x HDMI 1.4 connector
  Maximum output: 1080p@60Hz, support for HDMI loop Input

INPUT

•  1x HDMI 1.4 connector
  In synchronous mode, video sources input from this connector can be scaled to fit the entire screen automatically.
•  2x sensor connectors
  Connect to brightness sensors or temperature and humidity sensors.

PERFORMANCE

•  Powerful processing capacity
  − Quad-core ARM A55 processor @1.8 GHz
  − Support for H.264/H.265 4K@60Hz video decoding
  − 1 GB of onboard RAM
  − 16 GB of internal storage
•  Flawless playback
  1x 4K video playback or 2x 1080p video playback

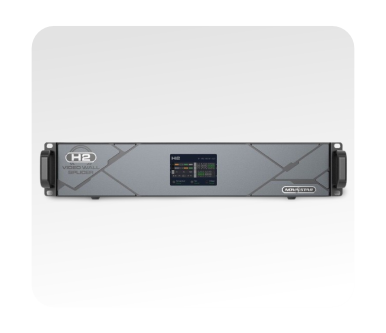

• Two different types of 4K Sending Cards available:
  • H_20xRJ45: Manages up to 13 million pixels
  • H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
• Different configurations possible on one Sending Card:
  • 4x 2K × 1K@60 Hz
  • 2x 4K × 1K@60 Hz
  • 1x 4K × 2K@60 Hz
• Online monitoring for all input & output cards
• “Hot-Swap” function for all in- & output cards
• IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
• Automatic decryption of HDCP protected sources
• multi-screen management
• web control

specifications:

• Max. Number of input cards: 4
• Max. Number of input channels: 16
• Max. Number of output cards: 2
• Max. Loading Capacity: 26,000,000 Pixel
• Max. Number of layers: 32

general specifications:

• Supply voltage: AC 100 – 240V, 50/60 Hz
• Power consumption: 210 watts
• Dimensions: 482.6 × 88.1 × 455mm (W×D×H)
• Weight: 15.6k g

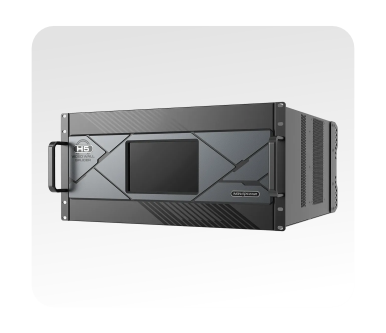

• Two different types of 4K Sending Cards available:
  • H_20xRJ45: Manages up to 13 million pixels
  • H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
• Different configurations possible on one Sending Card:
  • 4x 2K × 1K@60 Hz
  • 2x 4K×1K@60 Hz
  • 1x 4K × 2K@60 Hz
• Online monitoring for all input & output cards
• “Hot-Swap” function for all in- & output cards
• IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
• Automatic decryption of HDCP protected sources
• multi-screen management
• web control

specifications:

• Max. Number of input cards: 10
• Max. Number of input channels: 40
• Max. Number of output cards: 3
• Max. Loading Capacity: 39,000,000 Pixel
• Max. Number of layers: 48

general specifications:

• Supply voltage: AC 100 – 240V, 50/60 Hz
• Power consumption: 400Watt
• Dimensions: 482.6 × 532.8 × 228.2mm (W×D×H)
• Weight: 25 kg

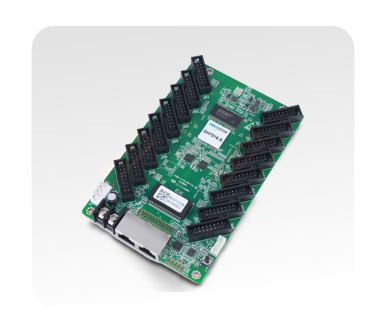

DH7516 is a universal receiving card launched by Novarstar. The maximum load of single card is 512*384 pixels

• Input voltage: DC 3.3v-5.5v,
• Constant current: 0.5A
• Rated power: 2.5W
• Consumption temperature: – 20℃- + 70℃
• Humidity: 10%RH-90%RH, non condensing
• Temperature: – 25 ℃ – + 125 ℃
• Size: 18.4mm x 145.7mm x 91.5mm
• Weight: 102g

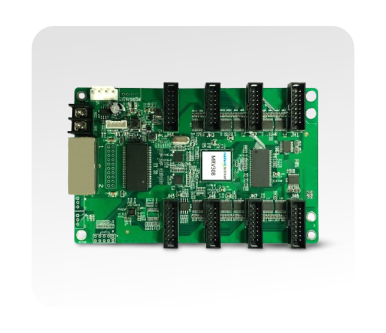

3308 is a universal receiving card launched by Novarstar. The maximum load of single card is 512*512 pixels .

• Input voltage: DC 3.3v-5.5v,
• Constant current: 0.5A
• Rated power: 2.5W
• Consumption temperature: – 20℃- + 70℃
• Humidity: 10%RH-90%RH, non condensing
• Temperature: – 25 ℃ – + 125 ℃
• Size: 91.5mm x 145.7mm x 18.4mm
• Weight: 93g
